Honda Acty Timing Belt Replacement: A Crucial Maintenance Guide
When it comes to maintaining your Honda Acty, one of the most critical tasks is the timely replacement of the timing belt. According to the manufacturer's manual, it's recommended to replace the timing belt no later than every 100,000 kilometers (approximately 62,000 miles) or every seven years. Delaying this replacement can lead to severe engine damage, where the pistons and valves collide, often resulting in costly repairs or even necessitating a complete engine replacement.
Proactive Maintenance Strategy: Consider replacing the timing belt earlier if you're servicing other related components. For instance, if you're replacing the alternator belt at around 68,000 kilometers, it’s sensible to address the timing belt simultaneously. This approach not only saves time but also ensures that all critical components contributing to the engine's timing are in optimal condition.

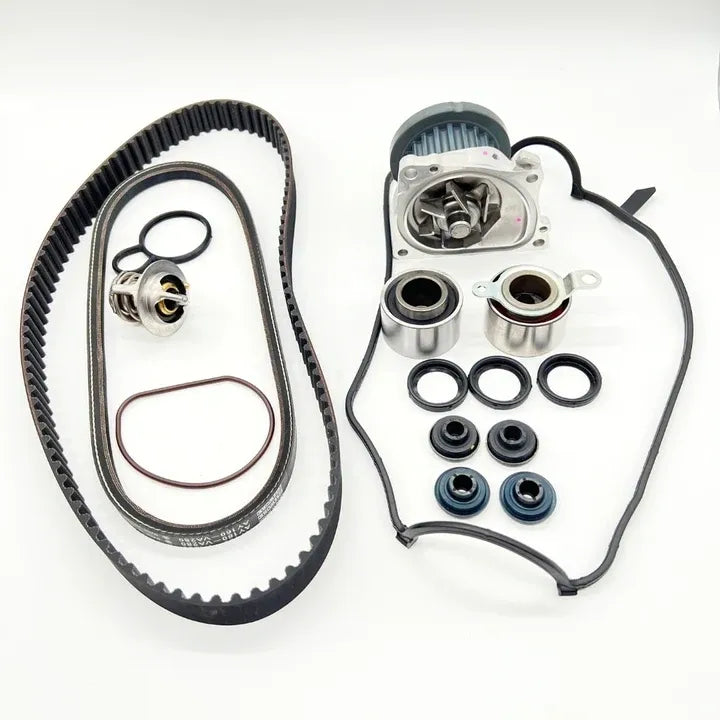

Comprehensive Replacement: When replacing the timing belt, it’s crucial to address other associated components to ensure a thorough overhaul. This includes the timing belt tensioner, idler pulley, water pump, and the water pump o-ring. Additionally, consider replacing the alternator belt and the air conditioning compressor belt. Cam and crank seals are also vital components that should not be overlooked.
Detailed Replacement Process: To access the timing belt, you'll need to remove the cylinder head cover and all belt covers on the engine's passenger side. The process involves removing the passenger side engine mount. When lifting the engine with a jack, take care to protect the oil pan with a rubber pad or cloth to prevent damage.
Setting the Engine to Top-Dead-Center (TDC): The #1 cylinder should be set to top-dead-center. This is done by aligning the TDC marks on the crankshaft pulley and engine block, along with ensuring the "UP" label on the cam sprocket is correctly positioned. It's crucial to note this alignment for accurate installation of the new timing belt.
Timing Marks Alignment: Ensure the small notch on the rim of the crank pulley (indicating the timing side mark) is aligned with the corresponding engine block mark. The two marks on the cam gear should align with the top line of the engine cylinder head. After installing the new timing belt, verify that all the marks are still aligned and tensioned correctly. Rotate the crankshaft two full turns (720 degrees) to confirm the timing marks align again.
Final Steps and Precautions: After loosening the timing belt tensioner bolt, slide the timing belt off. Proceed to replace the tensioner, idler pulley, water pump, and o-ring. Be prepared for coolant loss when removing the water pump.
Once the new timing belt is installed, double-check the crankshaft and camshaft pulley positions against the TDC marks. The idler pulley and tensioner bolts should be torqued to 4.5kgm. If the Acty struggles to start or runs roughly post-replacement, recheck the belt positioning and cylinder alignment.
In conclusion, timely and precise replacement of the timing belt in your Honda Acty is essential for maintaining its performance and longevity. This task, although intricate, is crucial for ensuring the smooth operation of your vehicle. Stay tuned to OIWA's blog series for more insightful tips and guidance on maintaining your Honda Acty Japanese kei truck.
