Upgrading Speakers In Honda Acty Kei Truck Guide

Transforming the audio experience in your Honda Acty kei truck can be both exciting and rewarding. If you're considering upgrading or adding a new speaker, this detailed guide will assist you in navigating the process seamlessly.

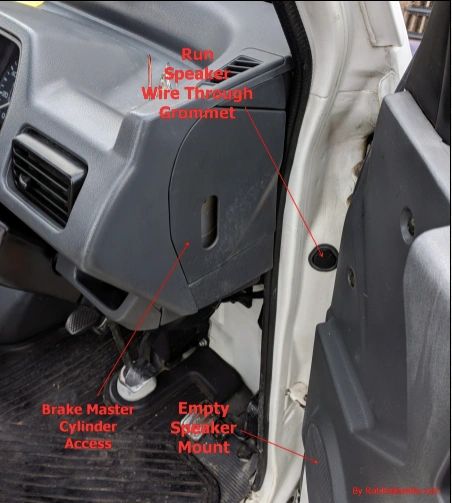

To get to the right stereo channel speaker wire remove the brake master cylinder access door by pulling it off then unbolt the master cylinder to give you room to reach behind it and access the wire which is taped to another wire bundle. PHOTO AND INFO FROM ROBROBINETTE.COM
To get to the right stereo channel speaker wire remove the brake master cylinder access door by pulling it off then unbolt the master cylinder to give you room to reach behind it and access the wire which is taped to another wire bundle. PHOTO AND INFO FROM ROBROBINETTE.COM



1. Preparing for Speaker Installation:Before embarking on your speaker upgrade project, you’ll need to access the speaker location. Start by removing the interior panel. This involves taking out five Phillips head screws – two located at the ends of the grab handle under the plastic caps, one behind the door open latch, and two towards the front of the panel. Gently open the door latch and remove the plastic bezel. For the window crank, slightly pull it away from the door and remove the retaining clip using a seal pick or small needle-nose pliers.

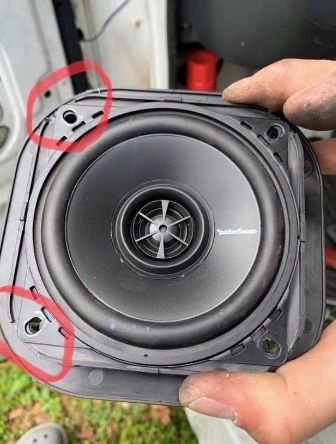

These Rockford Fosgate RFx4 Prime 4 inch speakers fit but you have to trim off the plastic ridge at all 4 corners (highlighted above) and remove the speaker cup with a razor knife. They are coaxial speakers (tweeter & woofer) and sound good in the small ACTY cabin. Photo and speaker information by Dave Heaps.
These Rockford Fosgate RFx4 Prime 4 inch speakers fit but you have to trim off the plastic ridge at all 4 corners (highlighted above) and remove the speaker cup with a razor knife. They are coaxial speakers (tweeter & woofer) and sound good in the small ACTY cabin. Photo and speaker information by Dave Heaps.



2. Removing the Door Panel:Once the screws and bezel are removed, carefully work around the exterior of the panel, gently popping the plastic rivets. Then, remove the panel by pushing it upward and forward from the rear, bottom corner. This step requires a bit of finesse to avoid damaging the panel.

3. Swapping Out the Speaker:With the panel off, proceed to remove the old speaker. Unscrew the four Phillips head screws holding the speaker and its cup. After removing the old speaker, the next step involves modifying the speaker cup to fit the new speaker. Use a razor knife to cut out the back of the speaker cup, providing clearance for the new speaker’s larger magnet.

These 6.5" speakers fit by adding a nut as a spacer between the back of the speaker and the door. The door cover fit over these speakers without problem.
These 6.5" speakers fit by adding a nut as a spacer between the back of the speaker and the door. The door cover fit over these speakers without problem.



4. Adjusting the New Speaker Fit:If your new speakers have a larger frame, you may need to shave their lip at the four corners. This adjustment ensures the new speaker sits flush in the cup. Carefully perform this step to avoid damaging the new speaker.



Photos and install by Jesse Colon.
Photos and install by Jesse Colon.



5. Reassembling the Door Panel:After installing the new speaker, it’s time to put everything back together. Reverse the removal process, ensuring all components are securely fastened. Pay particular attention to the alignment of the door panel as you reattach it, ensuring a snug fit.



SHOP KEI TRUCK PARTS AND ACCESSORIES AT OIWAGARAGE.CO
SHOP KEI TRUCK PARTS AND ACCESSORIES AT OIWAGARAGE.CO



6. Recommended Speakers for Your Acty:For an optimal audio experience, consider Rockford Fosgate RFx4 Prime 4-inch speakers, ideal for the Acty’s compact cabin. For those preferring larger speakers, 6.5-inch Pioneer TS-G1340R 2-Way Coax Speakers are an excellent option, requiring minimal modification for installation.

7. Maximizing Audio Quality:Remember, the sound system in your Acty is not just about the speakers. Regular maintenance of the audio system, including checking connections and ensuring your radio is functioning optimally, will further enhance your listening experience.

By following these detailed steps, you can significantly upgrade the audio system in your Honda Acty, ensuring every journey is accompanied by high-quality sound. Keep following OIWA’s blog series for more insights and guides on getting the most out of your kei truck.
